NVMC Series
40A
MPPT tracking efficiency > 99.9%
Liquid, Gel, AGM and Lithium battery
Bluetooth Monitor
Dual automatic restriction
Four stages charge
Accurate temperature compensation
The NVMC series solar controller integrates advanced Maximum Power Point Tracking (MPPT) technology, achieving up to 98% conversion efficiency for optimal solar energy harvesting. It features 12/24V automatic recognition and supports multiple battery types, including Liquid, Gel, AGM, and Lithium, with remote temperature sensing for precise charging and extended battery life. The controller includes a built-in over-temperature power reduction function for protection, along with a four-stage charging process (MPPT, boost, equalization, float) to maximize battery performance. For user convenience, it offers an LCD display for real-time monitoring, Tuya SmartLife APP for Bluetooth-based remote control and energy statistics, and multiple load control modes (Always On, Dusk to Dawn, Evening, Manual). Additionally, it provides dual automatic protection against exceeding rated charging power/current and supports RS485 Modbus communication via an RJ11 interface for flexible system integration.
Product Features
Super professional remote monitoring on APP and PC: convenient daily usage, smart large-scale aftersales without time and location limitation.
Built-in MPPT solar charge controller
Wide PV input voltage range (60V to 450V), minimum connect 2pcs PV panel, save installation cost.
Max 8 pcs in parallel, extend loading capacity to 49.6KW
Smart tuya communication bar(Easy management for users)
Built-in anti-dust kit for harsh environment, avoid short circuit.
High efficiency (max 97.5%), no-load loss less than 30W.
Run without battery
Combining solar system, AC utility, and battery power source to supply continuous power(10MS transfer time)
Dual back up load port(EPS port& smart port)
Support power the load and charge battery at the same time by 1.7 rates of Input Utility power
Overload, short circuit and Deep discharge protection of battery
Intelligent fan speed regulation, reduce noise and power consumption.
5 year warranty.
Applications of Inverters
1. Solar Power Generation: Converts the direct current (DC) produced by solar panels into alternating current (AC) for grid connection or self-use.
2. Electric Vehicles: Converts the DC from the battery into AC to drive the electric motor.
3. Household Appliances: Provides backup power during outages by converting DC from batteries into AC for home use.
4. Industrial Equipment: Supplies AC power to equipment that requires it.

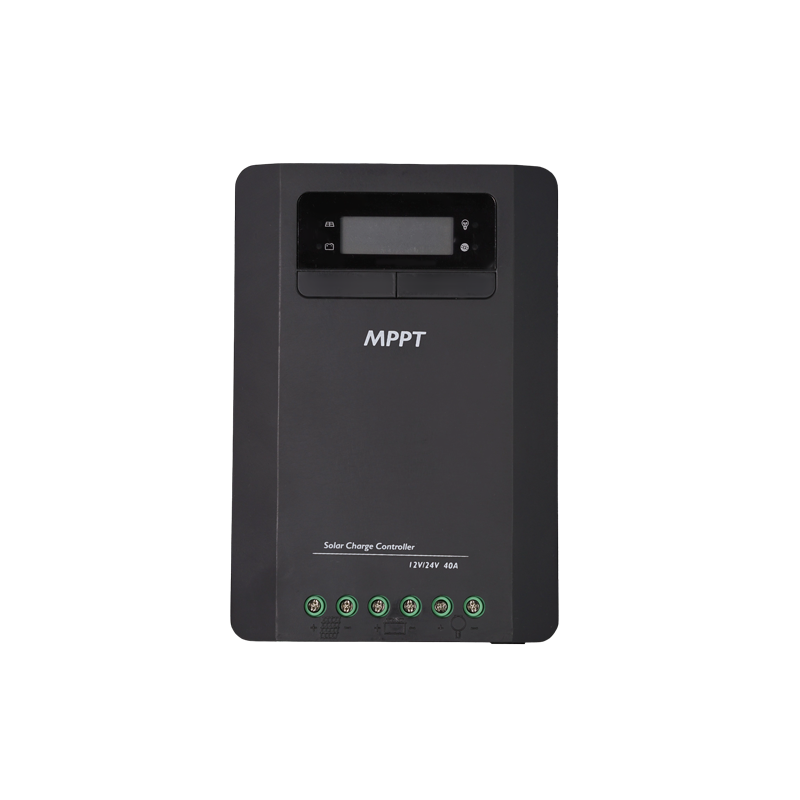

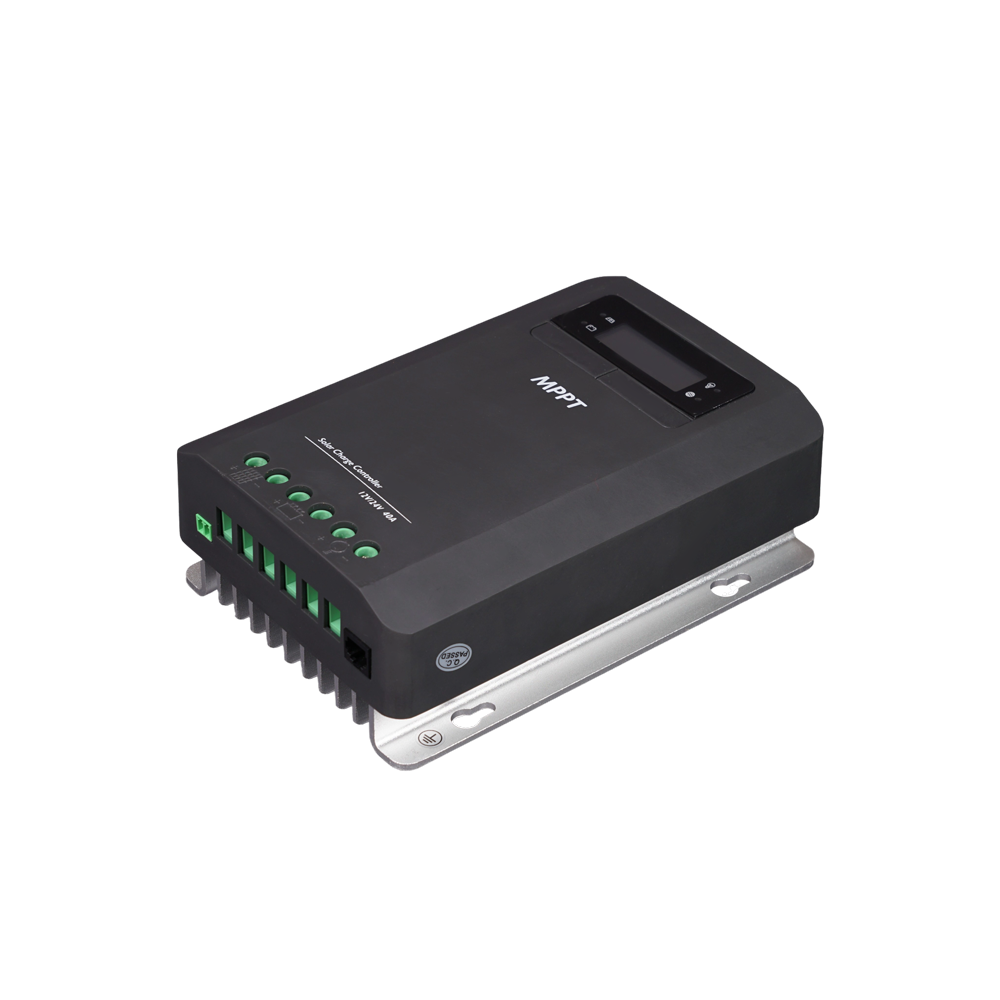

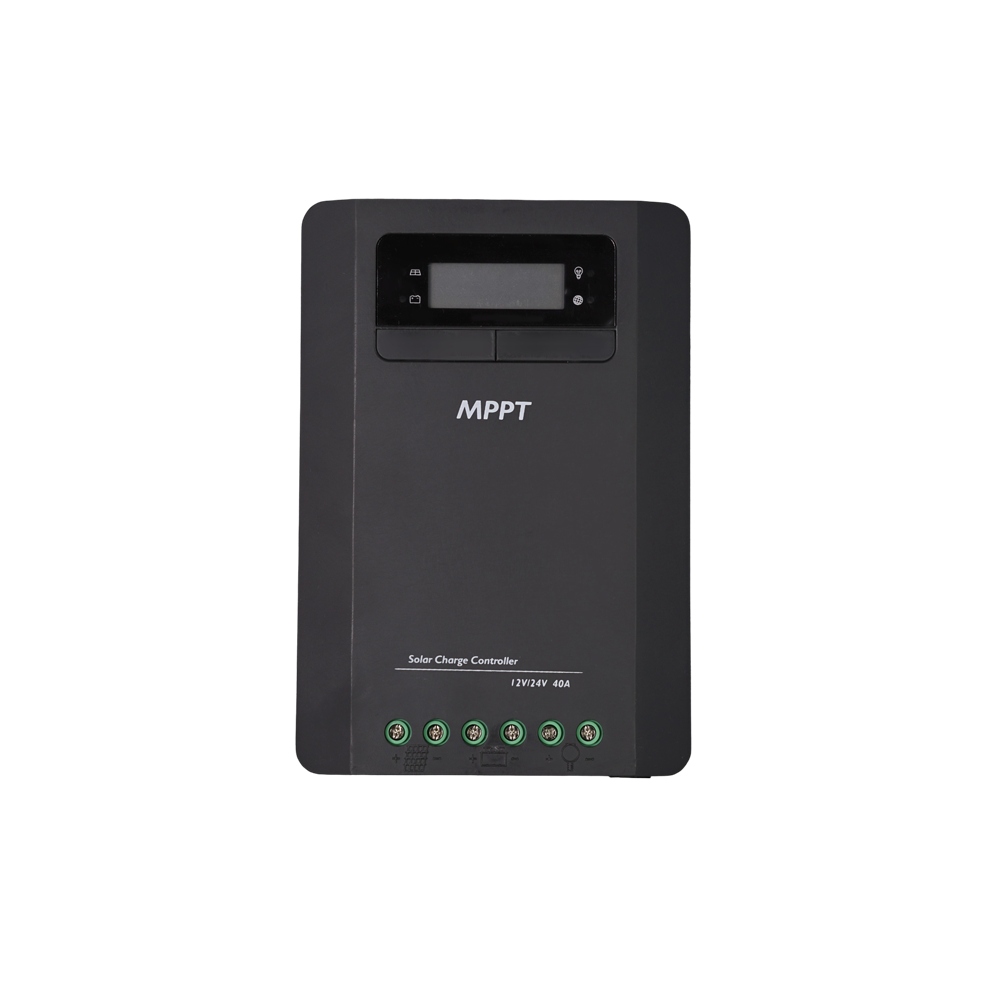

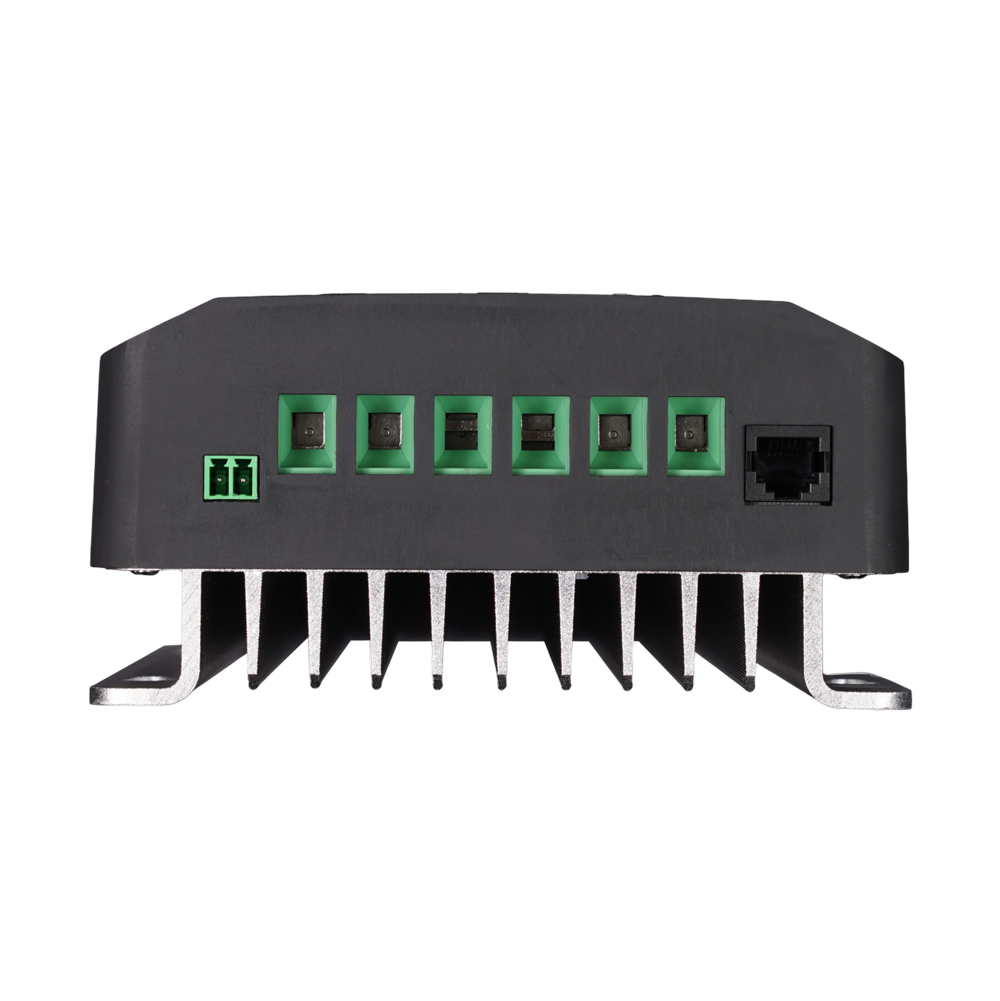

Product Display

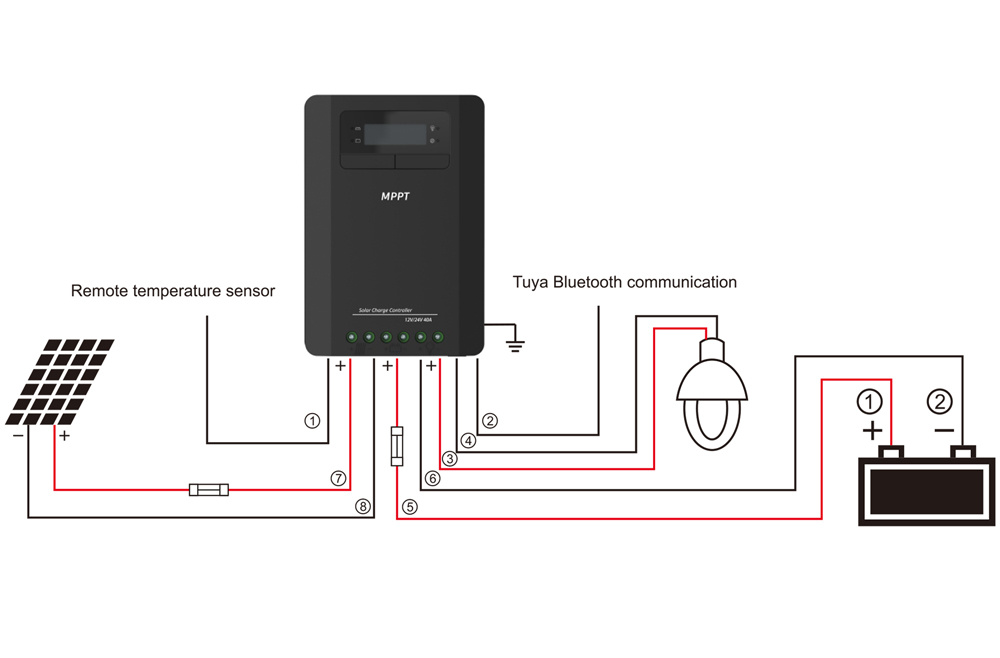

OFF GRID SYSTEM APPLICATION
Solar charge controllers are essential components in off-grid solar setups, managing the power output from solar panels to ensure safe and efficient battery charging and discharging. MPPT solar controllers deliver consistent performance across diverse environmental conditions. They incorporate temperature compensation, automatically adjusting charging parameters based on ambient temperature fluctuations. Whether in scorching summer heat or freezing winter temperatures, this functionality guarantees peak efficiency and prolonged battery life.
MOES solar controllers utilize MPPT technology to minimize energy waste and enhance the system’s overall efficiency.
010203
TECHNICAL PARAMETER
NVMC SERIES
System Voltage: 12/24V Auto
Max Charging Current: 40A
Max PV Input: 90V
Battery Type: Gel, AGM, Liquid, Lithium
