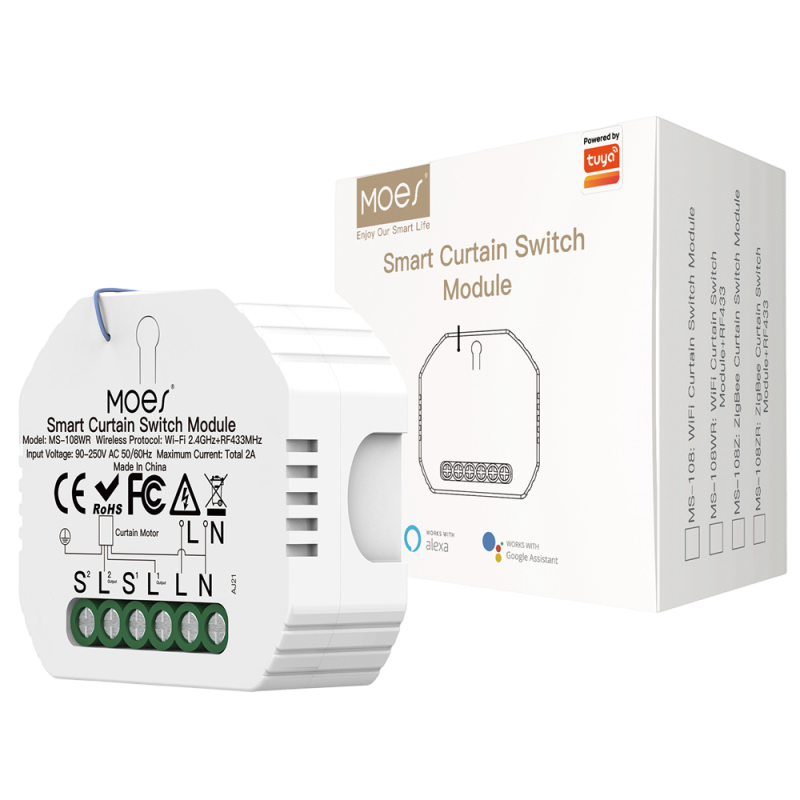

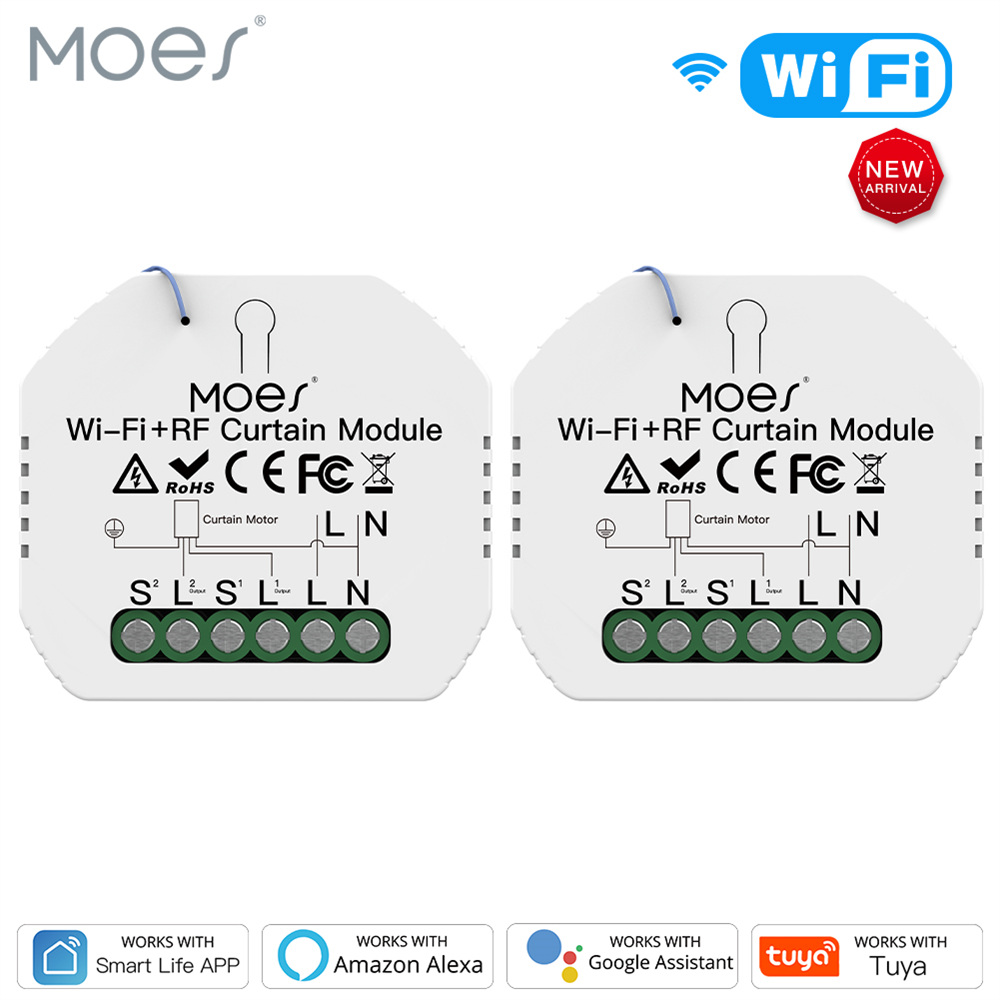

MS-108WR
1.Use with Much More Convenience: Converts traditional blinds shutters motor into smart devices that can be controlled via voice and app. Also, it can be connected with your roller blinds shutter motor to smartly control your curtains.
2.RF and Wireless Remote Control: Enable to remotely control your connected devices on your smart phone wherever you are. Connects via 2.4 GHz WiFi without a hub; built-in RF433 frequency,so it can be controlled with remote control switch with encoding 1527; compatible with Smart Life or Tuya app, available on Android and iOS.
3.Hands-free Voice Control: Compatible with Amazon Echo and Google Home for hands-free voice-activated control of curtains, blinds shutter, providing your smart life for controlling roller blinds shutter with much more convenience.
4.Timer Setting and Family Sharing:Set automatic timers to open blinds at specific times through the app (schedule, countdown, loop); connects to multiple devices so you can share control with your family.
5.Before you order: ensure motor has 4 wires (motor not included); ensure motor is not DC; Please use this module with RF433 remote control switch (only encoding 1527 required).
Product Features
Super professional remote monitoring on APP and PC: convenient daily usage, smart large-scale aftersales without time and location limitation.
Built-in MPPT solar charge controller
Wide PV input voltage range (60V to 450V), minimum connect 2pcs PV panel, save installation cost.
Max 8 pcs in parallel, extend loading capacity to 49.6KW
Smart tuya communication bar(Easy management for users)
Built-in anti-dust kit for harsh environment, avoid short circuit.
High efficiency (max 97.5%), no-load loss less than 30W.
Run without battery
Combining solar system, AC utility, and battery power source to supply continuous power(10MS transfer time)
Dual back up load port(EPS port& smart port)
Support power the load and charge battery at the same time by 1.7 rates of Input Utility power
Overload, short circuit and Deep discharge protection of battery
Intelligent fan speed regulation, reduce noise and power consumption.
5 year warranty.
Applications of Inverters
1. Solar Power Generation: Converts the direct current (DC) produced by solar panels into alternating current (AC) for grid connection or self-use.
2. Electric Vehicles: Converts the DC from the battery into AC to drive the electric motor.
3. Household Appliances: Provides backup power during outages by converting DC from batteries into AC for home use.
4. Industrial Equipment: Supplies AC power to equipment that requires it.
Product Display
010203
MS-108WRTECHNICAL SPECIFICATIONS
Model: MS-108WR
Product Type: Smart Curtain Switch Module
Voltage: 90-250V AC 50/60Hz
Current: 2A
Max.Power: 500W(250V)
Wireless Protocol: Wi-Fi 2.4GHz IEEE 802.11 b/g/n RF433
Operation Temp.: -10℃C-+40°C
Case Temp.: Tc: +80°C (Max.)

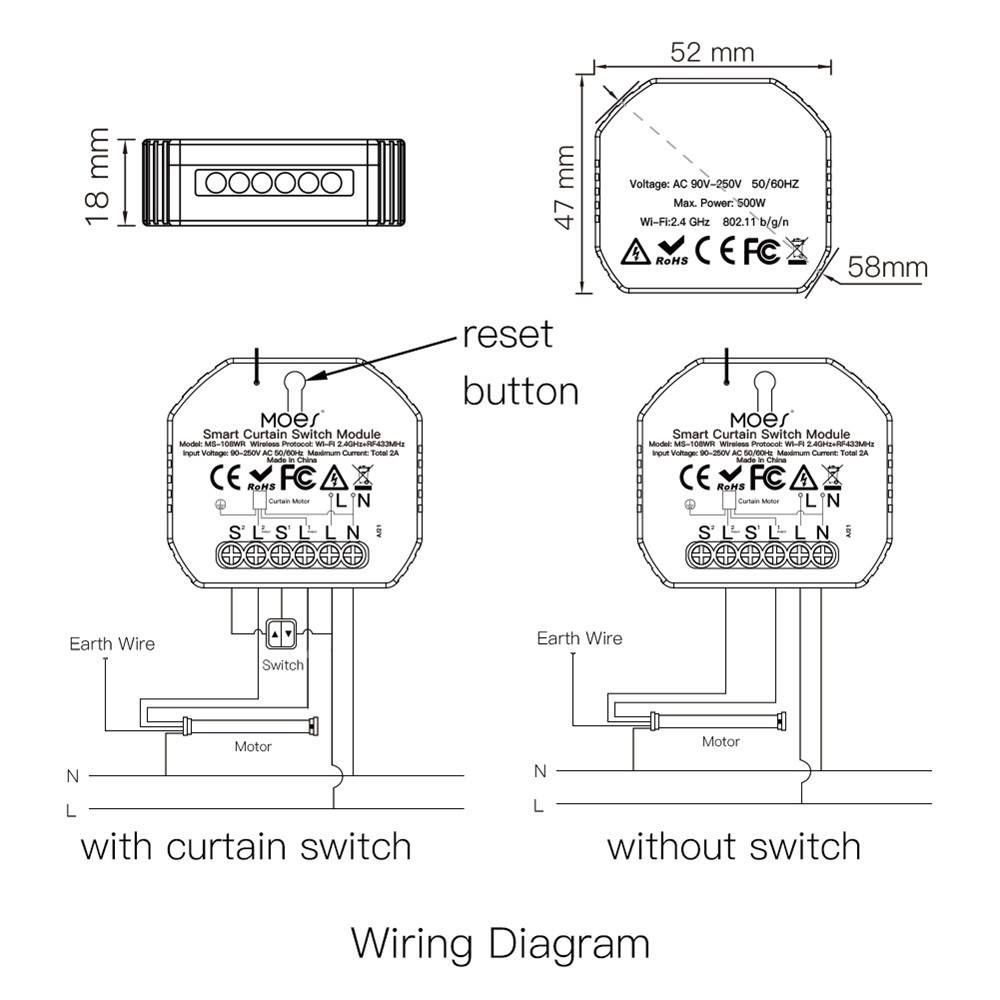

Dims(WxDxH): 52x47x18 mm
IP Rating: IP20
Frequency Band: 2.412~2.484GHz
Maximum Radio Transmit Power: < +20dBm
