WiFi Smart Hybrid Solar Inverter 4.2KW 6.2KW Off-Grid 48V Inverter Charger with DC to AC Control Single Output Inverter

NVESS Series

4.2KW/6.2KW

Read More

Built-in MPPT Solar Controller

(80A/100A)

MPPT Voltage Range: 60V-450V

Multi-Protection

WiFi Monitor

Pure Sine Wave

Operate without a battery

NVESS Series is a multifunctional inverter/charger that combines the functions of an inverter, solar charger, and battery charger, providing portable sized uninterruptible power supply support. Its comprehensive LCD display provides users with configurable and easily accessible button operations, such as battery charging current, AC charger priority, and acceptable input voltage based on different applications.WiFi inverters enhance user experience and system management

efficiency through features such as remote monitoring, control, and fault alerts, making them suitable for a variety of settings including homes, businesses, and industrial environments.

product details

Product Features

Super professional remote monitoring on APP and PC: convenient daily usage, smart large-scale aftersales without time and location limitation.

Built-in MPPT solar charge controller

Wide PV input voltage range (60V to 450V), minimum connect 2pcs PV panel, save installation cost.

Max 8 pcs in parallel, extend loading capacity to 49.6KW

Smart tuya communication bar(Easy management for users)

Built-in anti-dust kit for harsh environment, avoid short circuit.

High efficiency (max 97.5%), no-load loss less than 30W.

Run without battery

Combining solar system, AC utility, and battery power source to supply continuous power(10MS transfer time)

Dual back up load port(EPS port& smart port)

Support power the load and charge battery at the same time by 1.7 rates of Input Utility power

Overload, short circuit and Deep discharge protection of battery

Intelligent fan speed regulation, reduce noise and power consumption.

5 year warranty.

Applications of Inverters

1. Solar Power Generation: Converts the direct current (DC) produced by solar panels into alternating current (AC) for grid connection or self-use.

2. Electric Vehicles: Converts the DC from the battery into AC to drive the electric motor.

3. Household Appliances: Provides backup power during outages by converting DC from batteries into AC for home use.

4. Industrial Equipment: Supplies AC power to equipment that requires it.

Product Display

Application

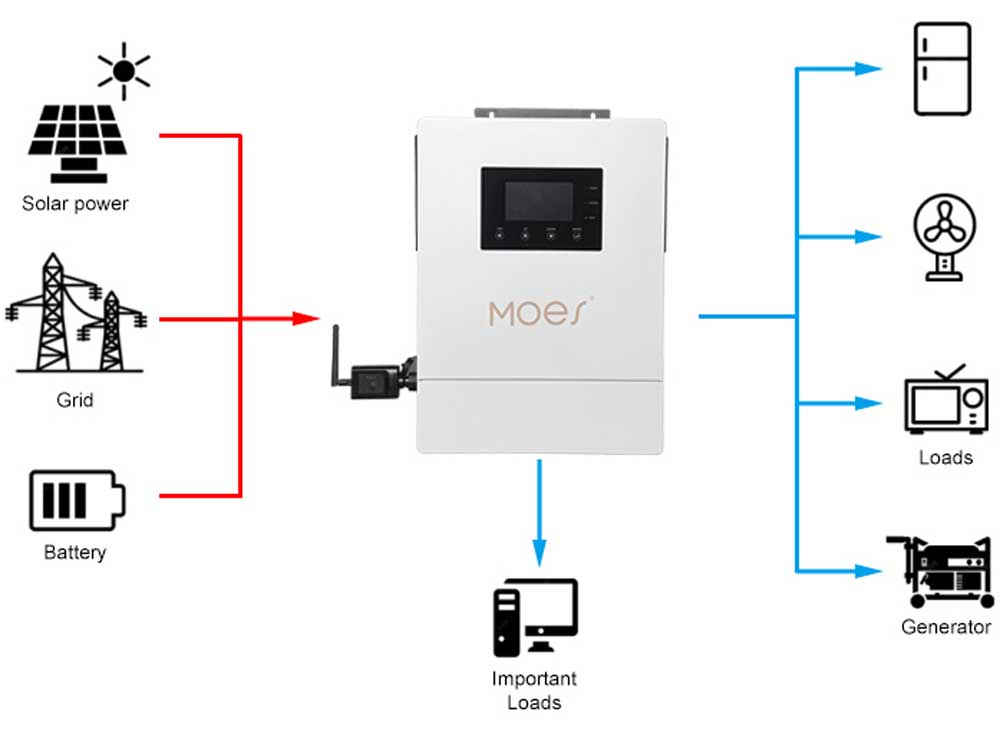

OFF GRID SYSTEM APPLICATION

An off-grid system operates independently from the main power grid, using renewable energy sources like solar, wind, or hydropower, paired with batteries for storage. Ideal for remote areas, emergency backup, or sustainable living, it provides reliable electricity without utility dependence. Key components include solar panels, charge controllers, inverters, and deep-cycle batteries. Off-grid systems reduce carbon footprints and energy costs but require proper sizing and maintenance. They empower self-sufficiency, making them popular for cabins, RVs, and rural electrification. Challenges include high initial costs and variable energy supply, but advancements in technology are improving efficiency and affordability.

The system handles variations in power demand by optimizing battery charge and discharge cycles for the MOES inverter (charging at off-peak rates and discharging during peak pricing). During a power outage, it automatically shifts to backup mode in milliseconds to sustain critical operations.
